How Are the Magnetic Poles (North/South) Arranged to Ensure Universal Compatibility During Construction?

Magnetic building tiles (Magna-Tiles, Connetix, PicassoTiles, and compatible brands) let children connect pieces instantly—no matter which way they rotate or flip them. This “universal compatibility” comes from a clever, patented-style magnetic pole arrangement that guarantees attraction every single time.
In 2026, this design remains the gold standard for STEM toys because it eliminates frustration, enables true open-ended play, and works across major brands. Here’s exactly how the North/South poles are arranged and why it works so perfectly.

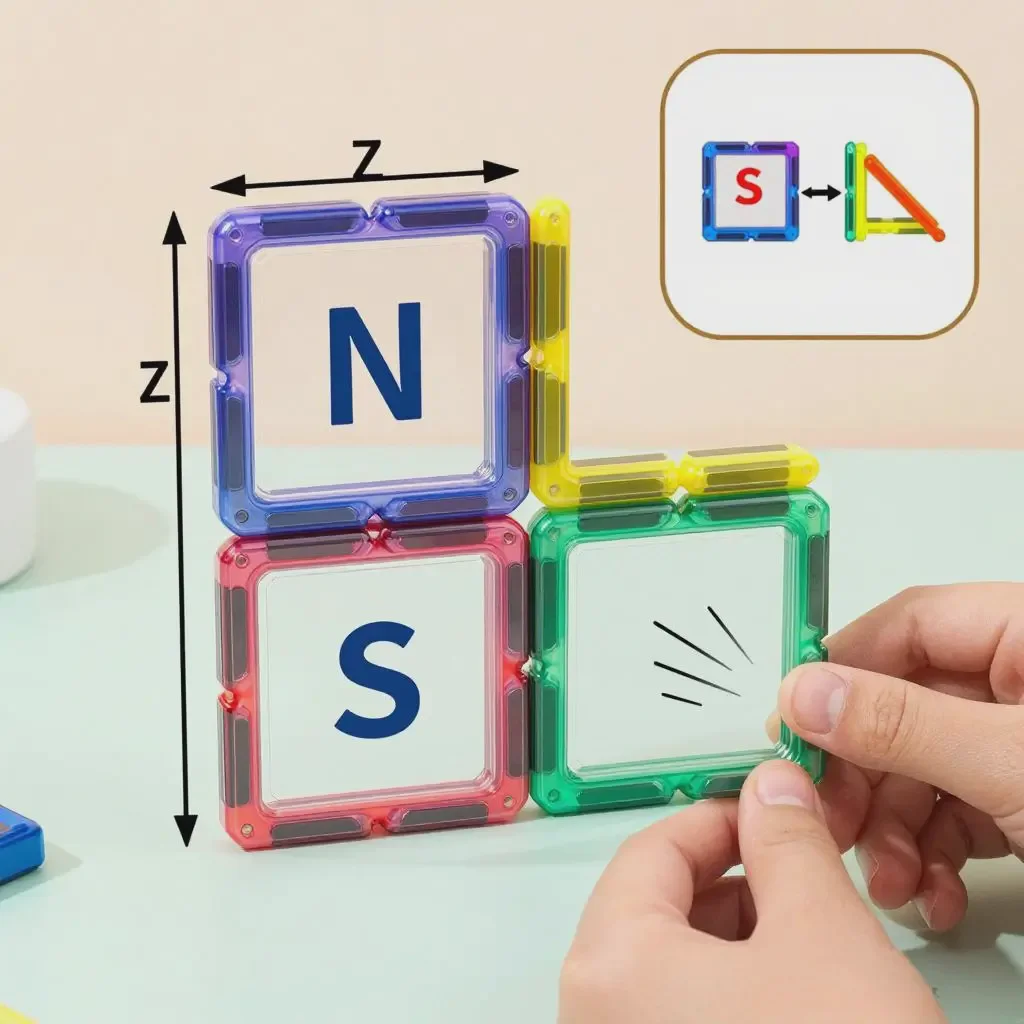

The Science: Z-Axis Polarity + Alternating North/South Pattern
The secret is not placing magnets along the edges (X-Y plane) like ordinary fridge magnets. Instead, engineers use a Z-axis orientation:
*Magnets are embedded perpendicular to the tile face (poles point “up” or “down” through the thickness of the tile).
*Each edge contains two magnets with opposite polarity along the Z-axis.
*The pattern alternates all the way around the tile: if one magnet on an edge has North pointing up, the next has North pointing down.
This creates a self-correcting magnetic field. When two tiles meet edge-to-edge:
*The facing magnets always present opposite poles (North meets South).
*They snap together with a satisfying “click” and self-align perfectly.
Key technical detail (from the original Magna-Tiles engineering explanation):
“The magnetic poles are aligned along the Z-Axis, and each magnet alternates the North/South direction of the poles… Regardless of whether you rotate it or flip it around, you always have the configuration of magnets and polarity.”
Flipping a tile effectively swaps its exposed polarity due to the Z-axis setup, so there is literally no “wrong side” or “wrong edge.”
Why This Arrangement Delivers True Universal Compatibility

1. Any edge to any edge — No need to match specific sides.
2.Any rotation (0°, 90°, 180°) — The alternating pattern stays consistent.
3.Any flip (face up or down) — Polarity automatically corrects.
4. Cross-brand mixing — Magna-Tiles, Connetix, and most premium sets follow the same Z-axis + alternating standard, so they connect reliably (Connetix magnets are stronger but maintain identical polarity layout).

Repulsion only happens in rare, unnatural misalignments (e.g., offsetting the top vs. the bottom half of an edge), which never occur in normal play.
This engineering makes building frustration-free for toddlers while still allowing complex 3D structures for older kids.
Brand Examples in 2026

*Magna-Tiles (the pioneer): Classic Z-axis alternating polarity—perfect balance for beginners, widely compatible.
*Connetix Tiles: Same polarity layout but with stronger neodymium magnets—ideal for taller builds while remaining fully compatible with other brands.
*PicassoTiles & similar sets: Follow the identical alternating Z-axis pattern for seamless mixing and matching.

All major brands pass ASTM F963 safety standards while preserving this universal connection system.
Key Design Principles Behind the Polarity Arrangement

*Z-axis embedding (poles vertical, not horizontal).
*Dual-magnet edges with strict alternation.
*Consistent polarity across the entire perimeter.
*Self-aligning magnetic field for effortless construction.

These principles turn simple plastic squares into infinitely creative building tools.
FAQ
How do magnetic tiles know which way to connect automatically?
The Z-axis polarity with alternating North/South on each edge ensures opposite poles always face each other—no matter the orientation.
Can you flip magnetic tiles and still build?
Yes! Flipping reverses the exposed polarity, so attraction remains perfect thanks to the Z-axis design.
Why don’t magnetic tiles repel each other like regular magnets?
The alternating pattern and Z-axis orientation guarantee complementary poles meet during edge-to-edge play. Repulsion only occurs in deliberate misalignments.
Are all magnetic tile brands compatible?
Most premium brands (Magna-Tiles, Connetix, etc.) use the same polarity layout and are dimensionally compatible, allowing seamless mixing.
Does stronger magnet strength affect polarity compatibility?
No. Connetix uses stronger magnets but keeps the exact same Z-axis alternating North/South arrangement, so compatibility stays universal.
The North/South pole arrangement in today’s magnetic tiles is a masterpiece of child-centered engineering. By using Z-axis orientation and precise alternation, manufacturers have created toys that connect effortlessly, spark creativity, and work across entire collections—making them a must-have for playrooms in 2026 and beyond.
